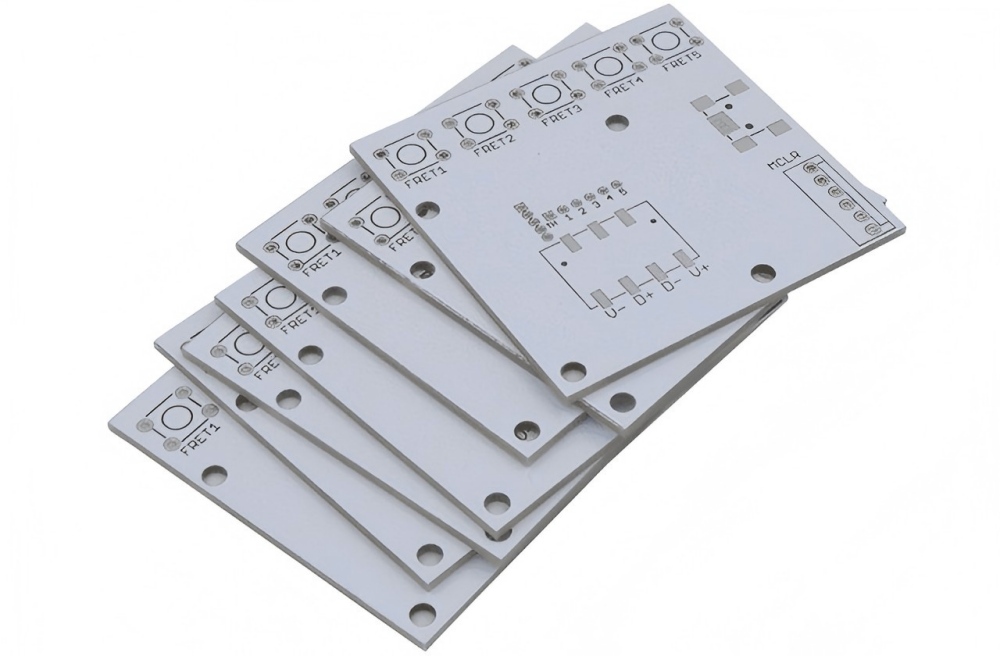

White PCBs are printed circuit boards featuring a specialized white solder mask that delivers superior thermal management and distinctive visual appeal. The white coating is achieved by blending titanium dioxide (TiO₂) pigment into the solder mask material, creating a highly reflective surface that minimizes heat absorption while retaining all protective functions of traditional solder masks. For white PCBs, this imparts their signature clean, bright appearance. They are used in a wide range of electronic products but are particularly popular in LED lighting and consumer electronics due to their aesthetic appeal and functional advantages.
Key Advantages of White PCBs
1. Enhanced Light Reflectivity for LED Applications
One of the primary advantages of white PCBs is their enhanced light reflectivity. The white solder mask used on these PCBs helps reflect light more effectively, making them an ideal choice for LED applications. Whether in LED lighting or backlit displays, the white surface ensures bright and efficient light output, minimizing energy loss and maximizing performance.
2. Aesthetic and Visual Appeal
Another major advantage of white PCBs is their aesthetic appeal. In today's world, visual design plays a significant role in electronics, and white PCBs add a sleek, modern touch. Brands in the consumer electronics market have embraced this look, incorporating white PCBs into high-end products like smartphones, tablets, and premium devices. These boards not only enhance product design but also convey a sense of sophistication and quality, appealing to tech enthusiasts.
3. Improved Component Visibility
White PCBs also offer enhanced component visibility, streamlining assembly, inspection, and production processes. The white substrate provides superior contrast, making even the smallest details—such as soldering defects or misaligned components—easier to detect. This proves particularly valuable during manufacturing stages where precision is critical. By utilizing white PCBs, technicians can swiftly identify potential issues, ensuring higher quality and fewer production delays.
Manufacturing Process of White PCBs
The manufacturing process for white PCBs follows the same fundamental steps as traditional PCBs.
First, a copper layer is applied to the substrate. Then, the white solder mask is carefully coated onto the board's surface. This mask helps protect the circuit board and adds a reflective white finish. However, applying the white solder mask requires additional precision. The mask must be applied uniformly to avoid issues like uneven color or surface imperfections.
Applications of White PCBs

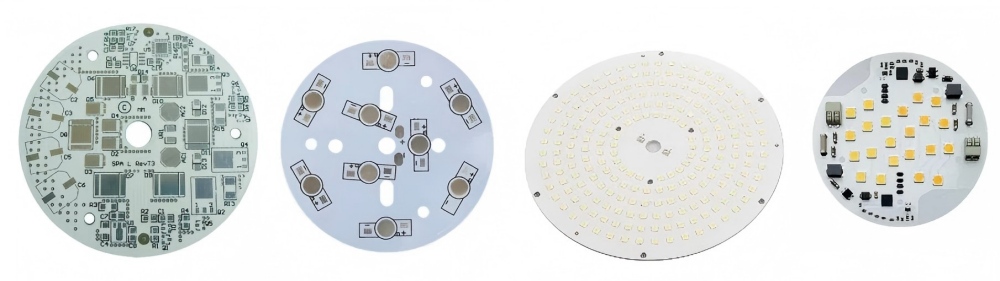

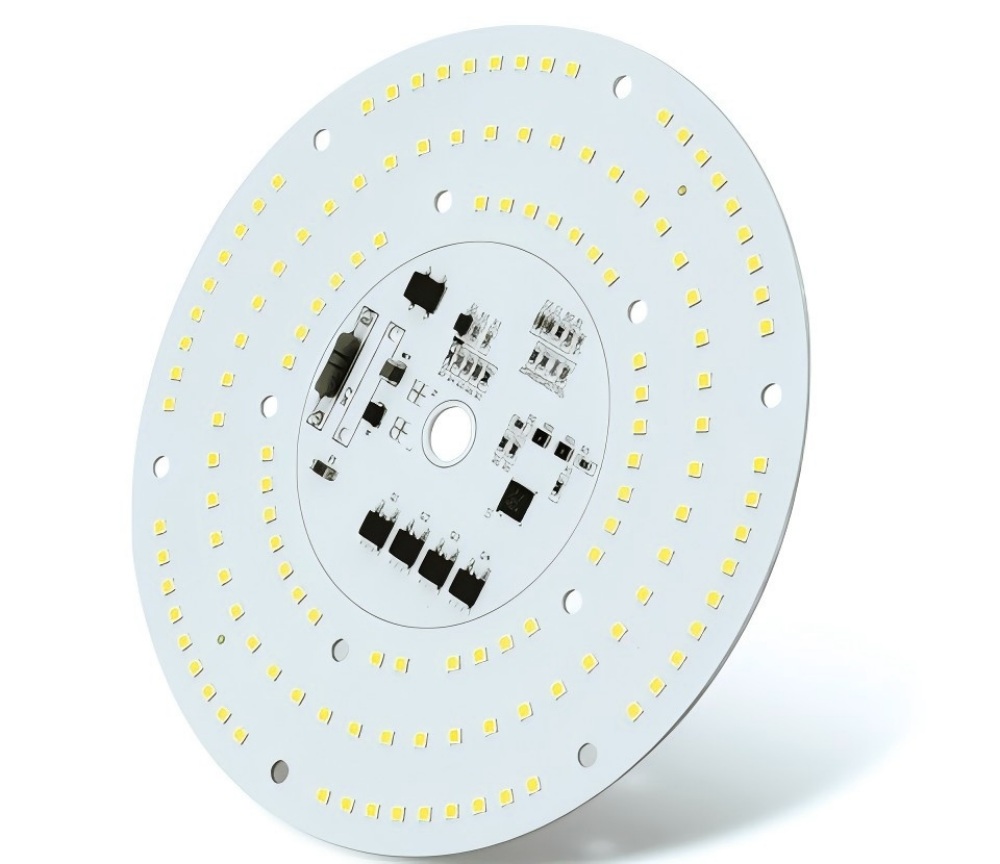

1. LED Lighting Systems
a. Office Lighting: Office equipment, retail displays, architectural lighting
b. Automotive Lighting: Headlights, interior lighting, daytime running light systems
c. Horticultural Lighting: Grow lights, greenhouse systems
d. Street Lighting: Municipal LED retrofits, smart city infrastructure
e. Display Backlighting: Televisions, monitors, mobile devices
2. Medical Electronics
a. Diagnostic Equipment: MRI systems, ultrasound machines, X-ray devices
b. Patient Monitoring: Vital signs monitors, electrocardiogram equipment
c. Surgical Tools: Endoscopes, laser systems, robotic surgery
d. Laboratory Instruments: Spectrometers, centrifuges, analyzers
e. Dental Equipment: Curing lights, imaging systems
3. Power Electronics
a. Power Supplies: Switching mode converters, voltage regulators
b. Motor drives: Variable frequency drives, servo controllers
c. Solar inverters: Maximum power point trackers, grid-tie systems
d. Battery management control: EV charging systems, energy storage
e. Industrial control: PLC modules, power distribution units
4. Scientific Instruments
a. Optical systems: Spectrophotometers, laser modules
b. Measuring tools: Precision balances, environmental sensors
c. Research Equipment: Mass Spectrometers, Chromatography Systems
d. Aerospace Applications: Satellite Systems, Avionics
Common Issues and Limitations of White PCBs
1. Thermal Sensitivity and Yellowing
One challenge for white PCBs is their thermal sensitivity. Prolonged exposure to high temperatures causes the white solder mask to yellow over time. This is particularly problematic in high-power applications or environments where PCBs endure sustained heat. Yellowing not only affects aesthetics but may also compromise board performance, as the solder mask may fail to provide adequate protection.
2. Cleaning and Maintenance
Cleaning and maintaining white PCBs can be challenging. Unlike traditional PCBs, white boards are more susceptible to staining, dirt, and discoloration. These marks are difficult to remove without compromising the board's integrity or appearance. The smooth, reflective surface of white PCBs makes even minor defects or smudges highly visible, complicating cleanliness maintenance—especially during assembly or handling.
3. Contrast Issues
Another limitation of white PCBs is the contrast between copper traces and the solder mask. The bright white background makes visually distinguishing traces more difficult, potentially hindering inspection and maintenance. This low contrast slows down the manufacturing process, as it requires more time to detect issues like short circuits or misaligned components, which are easier to spot on darker PCBs.
White PCBs vs. Other PCB Colors
1. Comparison with Green PCBs
When comparing white PCBs to traditional green PCBs, several differences warrant consideration. First, cost is one of the primary factors. Green PCBs are typically cheaper because they use standard solder masks, resulting in lower production costs. However, white PCBs offer superior visual appeal and are preferred for aesthetically focused products, such as high-end consumer electronics. While green boards are more common in everyday electronics, white PCBs can provide a sleek, premium look that appeals to luxury brands and designs pursuing modern sophistication.
2. Comparison with Black PCBs
When comparing white PCBs to black PCBs, both options possess distinct advantages. Black PCBs are often chosen for their elegant, high-end appearance, particularly in consumer electronics. However, whiteboards offer their own visual appeal, appearing more vibrant—especially in LED applications where light reflectivity is critical. The primary distinction lies in trace visibility—white PCBs offer superior contrast between traces and background compared to black PCBs, facilitating easier inspection and component placement., Conversely, black PCBs are renowned for enhanced thermal management performance, as their darker hue absorbs heat more efficiently. Both serve distinct purposes depending on intended use and design objectives.
Conclusion
In summary, white PCBs offer numerous advantages, including enhanced light reflectivity, superior aesthetic appeal, and improved component visibility. While they present limitations such as thermal sensitivity and maintenance challenges, their unique benefits make them ideal for LED lighting, consumer electronics, and luxury appliance applications.
The cost premium for white solder mask technology is only 10-15%, yet its benefits—including energy savings, reduced failure rates, and enhanced product performance—deliver significant returns. Whether you're designing next-generation LED systems, medical devices, or high-power electronics, white PCB technology provides the thermal advantages and professional appearance your products need to succeed.
