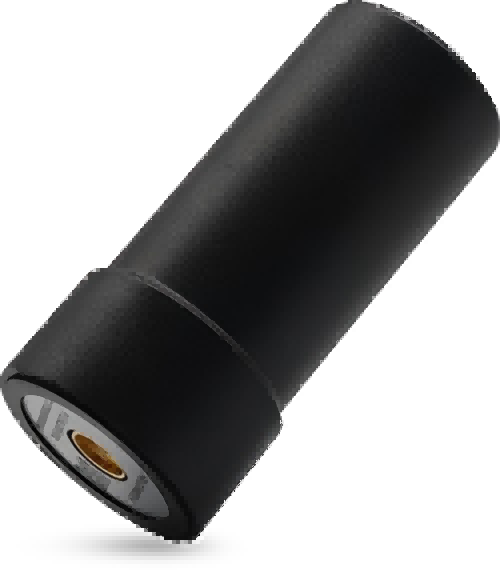

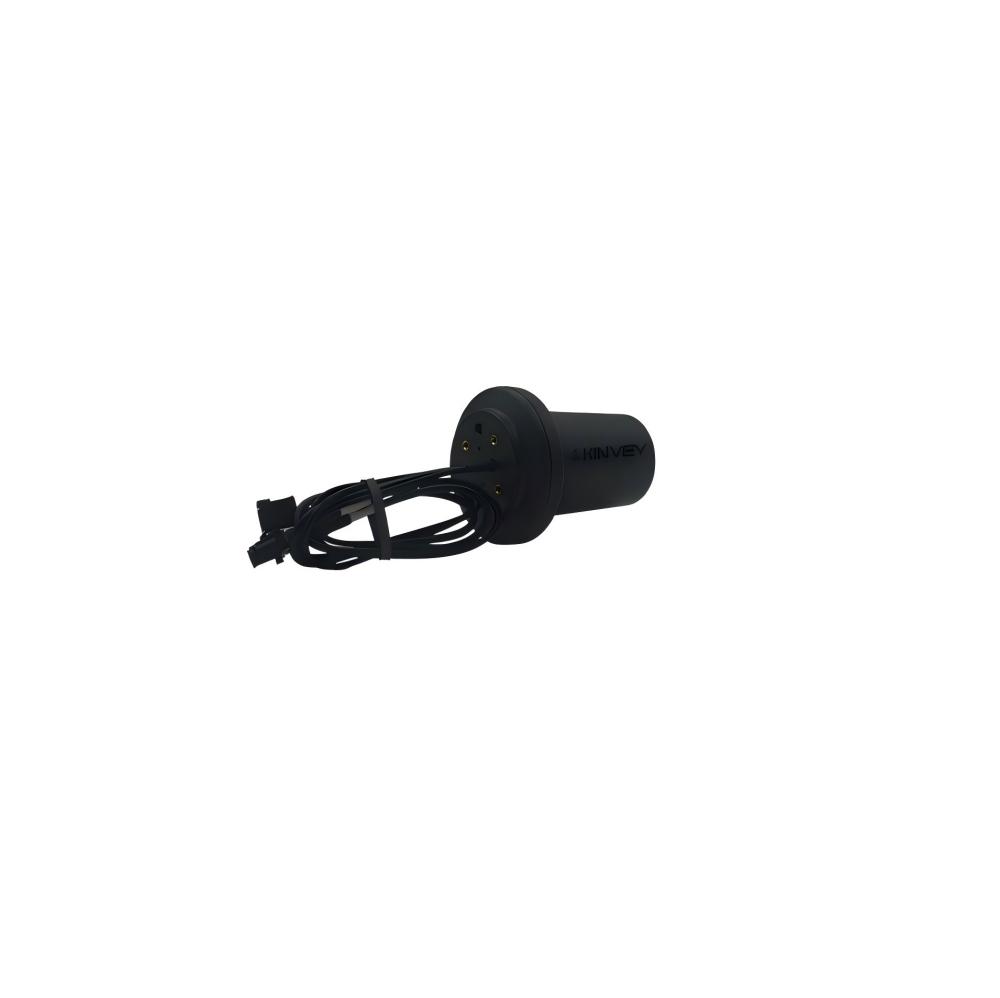

Drone antennas are critical components that enable unmanned aerial vehicles (UAVs) to communicate with remote controllers, other devices, and systems by transmitting and receiving radio waves. These antennas facilitate essential drone functions such as navigation, data transmission, and operation of onboard systems, making them indispensable for UAV performance and utility.
What Is the Function of Drone Antennas?
The drone antenna handles signal transmission and reception between the drone and its remote controller or ground station, playing a critical role in ensuring safe and efficient flight operations.
When the drone receives a signal from the remote controller, it processes the command and executes the corresponding action. For example, if the pilot wants the drone to ascend, they push the throttle stick upward, sending a signal to the drone via the antenna. The drone then increases motor power and begins climbing.
Similarly, when the drone transmits signals to the remote controller, it provides information about its flight status, such as altitude, speed, battery level, and GPS coordinates. This data appears on the remote controller's screen, allowing the pilot to monitor the drone's flight and make necessary adjustments.
The drone antenna ensures these signals are transmitted and received effectively, even over long distances. It must be designed to provide a strong, stable connection, minimizing signal loss or interference. This is particularly crucial for drones flying in areas with obstacles or interference, such as buildings or congested urban environments.
In summary, the drone antenna is a critical component enabling communication between the drone and its pilot, ensuring safe and efficient flight operations.
Technical Classification and Performance Characteristics of Drone Antennas
1. Differentiated Design of Omnidirectional vs. Directional Antennas

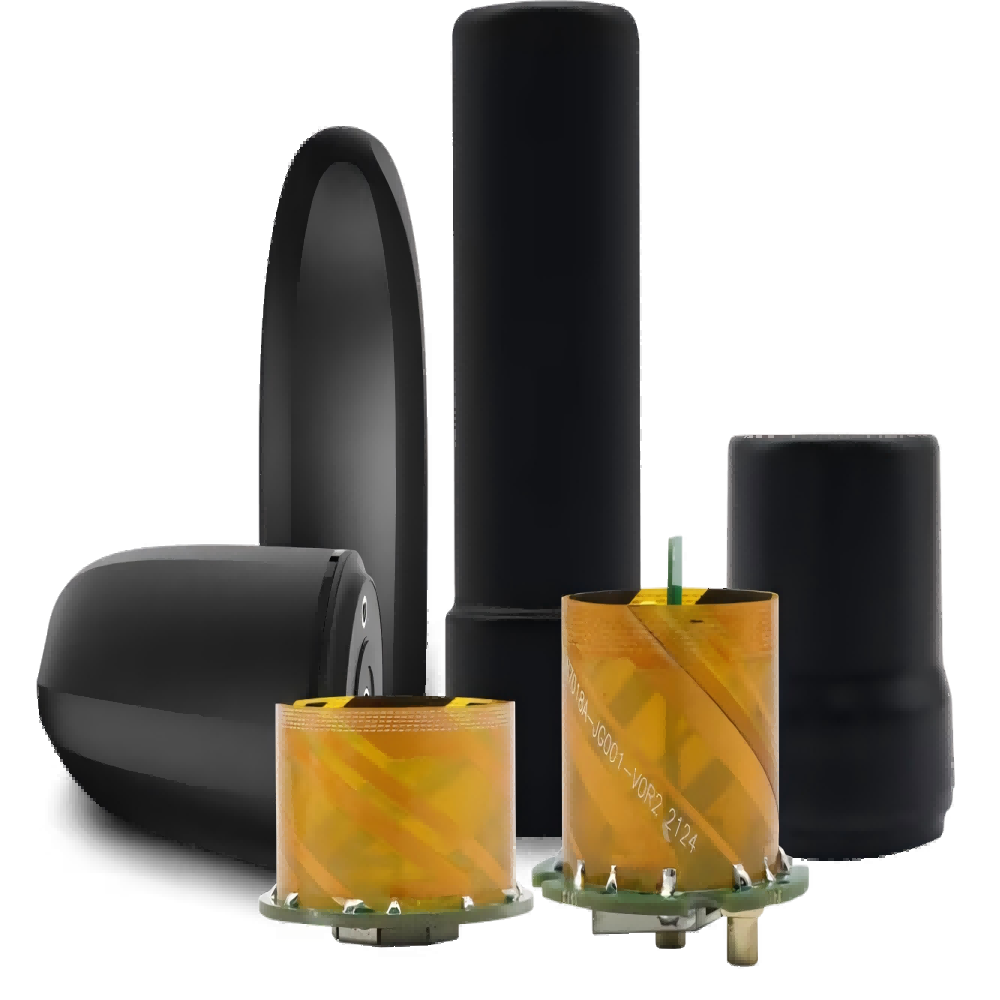

Omnidirectional antennas achieve 360° horizontal coverage through dipole or helical structures, suitable for short-range communication scenarios in consumer drones. Their advantage lies in balanced signal strength in all directions, though long-distance transmission efficiency is lower. Directional antennas utilize Yagi arrays or parabolic reflector technology to focus signals in specific directions, significantly enhancing gain and anti-interference capabilities. For example, in surveying drones, directional antennas enable long-range data transmission exceeding 10 kilometers, meeting high-precision mapping demands in complex terrains.
2. Innovations in Circular Polarization and Smart Antennas
Circularly polarized antennas reduce multipath interference through rotating electromagnetic field design, lowering error rates by 75% in dense urban environments with tall buildings. Smart antennas integrate electronic scanning and phased array technology to dynamically adjust radiation patterns, enabling adaptive beamforming. For instance, an agricultural drone's smart antenna system automatically optimizes signal patterns based on environmental changes, boosting communication efficiency by 20%.
3. Performance Evolution of Multi-band and High-frequency Antennas
Consumer drones predominantly utilize the 2.4GHz and 5.8GHz bands. The 2.4GHz band balances signal penetration and coverage range but is susceptible to interference from Wi-Fi devices. The 5.8GHz band experiences less interference but has a shorter coverage range. Industrial-grade equipment enhances diffraction capabilities through the 900MHz low-frequency band or employs millimeter-wave technology to achieve centimeter-level positioning accuracy. For instance, RTK antennas combined with centimeter-level positioning algorithms via the 5.8GHz band can elevate topographic mapping precision to a 1:500 scale.
Application Scenarios and Industry Value of UAV Antennas
1. Surveying and Geographic Information
Centimeter-level positioning is essential for high-precision surveying. For instance, RTK antennas integrated with LiDAR and photogrammetry enable millimeter-accurate building reconstruction. During disaster monitoring, communication antennas on drones rapidly establish temporary networks, providing real-time disaster information to rescue teams.
2. Precision Agriculture Operations
Multi-band antennas paired with variable-rate seeding technology enable drones to adjust seed distribution based on soil fertility dynamically. Centimeter-level flight path planning reduces pesticide usage by over 30%. For instance, an agricultural crop protection drone operating in tropical regions achieved a 40% improvement in communication stability by replacing its antenna with a ceramic-filled substrate model.
3. Power Line Inspection and Logistics Security
Directional antennas enable long-endurance drones to achieve ±10cm precision landing. Long-endurance drones combined with RTK positioning can automatically monitor power line corridors, identifying defects like conductor sag and insulator damage. During border patrols, drones utilize real-time early warning technology to improve response efficiency to illegal border crossing incidents significantly.
Future Development Trends of UAV Antennas
1. High-Frequency Bands and High-Capacity Technologies
With the proliferation of high-frequency communication technologies like 5G, UAV antennas will support higher-speed, larger-capacity data transmission. For instance, millimeter-wave and phased-array antennas will further enhance surveying accuracy and operational efficiency.
2. Intelligence and Adaptability
Smart and adaptive antenna technologies will significantly improve UAV communication performance and anti-interference capabilities. Innovative approaches like flexible reconfigurable antennas and smart skin technologies will enable antennas to dynamically adjust radiation characteristics based on environmental conditions.
3. Integration and Multifunctionality
Future drone antennas will transcend simple signal transceivers to become critical nodes in intelligent surveying systems. For instance, integrating edge computing and big data analytics will drive comprehensive upgrades in the geographic information surveying industry.
Summary
In summary, as the bridge connecting the sky and the ground, technological advancements and application expansions of drone antennas hold significant importance for driving industry modernization. From omnidirectional antennas to smart antennas, from centimeter-level positioning to high-frequency communication, each breakthrough in antenna technology is reshaping the application boundaries of drones. With the deep integration of technologies like 5G, IoT, and AI, drone antennas will continue evolving toward higher frequencies, wider bandwidths, and greater intelligence, providing robust support for the widespread adoption of drone technology.
