The manufacturing of a PCB (Printed Circuit Board) is a complex and precise process involving multiple steps, each critical to the performance and quality of the final product. From design, layout, printing, etching, drilling, copper plating, tin plating, cutting, testing, to final packaging, every step requires precise execution and strict quality control. The entire process demands advanced technical expertise and equipment support. Below is the detailed manufacturing process for PCBs:
Material Selection
PCB substrates are typically made from glass-fiber-reinforced epoxy (FR4), ceramic, or polyimide materials. Copper foil serves as the material for forming conductive paths. The choice of substrate and copper foil determines the circuit board's mechanical strength, electrical conductivity, and thermal stability.
· Substrate Selection: Choose an appropriate base material based on the PCB's design requirements. Common substrates include FR-4 (epoxy glass cloth laminate), which offers excellent insulation, mechanical strength, and cost-effectiveness, making it suitable for most general electronics. For high-performance, high-frequency applications, specialized substrates like polytetrafluoroethylene (PTFE) may be chosen due to their low dielectric constant and low loss factor, facilitating high-frequency signal transmission.
· Copper Foil Selection: As the conductive layer of the PCB, copper foil quality is critical. Common thicknesses include 1oz (approximately 35μm) and 2oz, selected based on the circuit's current-carrying capacity. Properties like copper foil roughness and adhesion also require attention. Excessive roughness may compromise etching precision, while insufficient adhesion risks foil delamination during subsequent processing. Therefore, procure high-quality copper foil from reliable suppliers.
· Other Auxiliary Materials: Additional materials such as dry film, ink, chemical solutions (etching solutions, plating solutions, etc.), and drill bits are also required. Dry film transfers circuit patterns, ink forms solder masks and character markings, chemicals play critical roles in etching and plating, while drill bits perform hole-making operations. Each material must be selected with appropriate specifications and brands based on process requirements to ensure smooth production.
Manufacturing Process
1. Internal Layer Fabrication:
· Material Cutting: Large substrate sheets are cut to PCB design dimensions to obtain required board blanks. Cutting must ensure dimensional accuracy and smooth edges, typically performed using CNC cutting machines.
· Internal Layer Film Application: Dry film is applied to the cut substrate via thermal pressing or vacuum bonding, adhering tightly to the surface to prepare for subsequent exposure.
· Exposure: Transfer the designed inner layer circuit pattern onto the dry film using an exposure machine. This machine employs ultraviolet light to trigger a photochemical reaction in the dry film over the circuit pattern areas, rendering them insoluble in the subsequent developing solution and thereby fixing the circuit pattern.
· Development: The exposed substrate is immersed in developer solution. Unexposed areas of the dry film dissolve, exposing the underlying copper foil and forming the preliminary internal circuit pattern.
· Etching: Unwanted copper foil is removed through chemical etching, leaving only the circuit paths. This is a critical step in PCB manufacturing, as any error may cause circuit failure or short circuits. Etching parameters—such as time, temperature, and solution concentration—must be strictly controlled to ensure circuit precision. Residual chemicals are removed via rinsing after etching.
· Stripping: Residual dry film on the inner layer traces is removed using chemical solutions or mechanical methods, yielding a clean inner layer board.
2. Laminating Process:
· Browning Treatment: The inner layer board undergoes browning treatment to form a uniform oxide layer on the trace surfaces. This enhances adhesion to the prepreg and prepares the board for subsequent lamination.
· Stack-up: Stack multiple inner layer boards with prepreg and outer layer substrates according to the predetermined laminate structure, ensuring precise layer alignment. The prepreg cures under high temperature and pressure, tightly bonding all layers together.
· Lamination: The stacked board is pressed using a vacuum laminator. Temperature, pressure, and time parameters are precisely controlled during lamination to prevent defects like bubbles or delamination. The process yields a multilayer board blank.
3. Outer Layer Circuit Fabrication:
· Drilling: Based on the PCB design, CNC drilling machines create vias and mounting holes of various diameters. Drilling parameters like speed and feed rate are controlled to ensure smooth hole walls, precise positioning, and prevent issues like broken drill bits or misaligned holes.
· Copper Plating: A thin copper layer is deposited within the drilled holes to establish electrical connections between inner and outer layer circuits via vias. This process ensures uniform copper thickness and strong adhesion.
· Full Board Plating: The entire PCB undergoes electroplating to thicken the copper layer, meeting requirements for electrical conductivity and mechanical strength. Post-plating cleaning removes residual plating solution from the board surface.
· Outer Layer Film Application, Exposure, Development, Etching, Film Removal: This sequence mirrors inner layer circuit fabrication but targets the outer substrate. These processes form complete outer layer circuits, establishing visible connections on the PCB surface.
4. Surface Treatment:
· Solder Mask Application: Solder mask ink is applied to the PCB surface. Through processes like exposure and development, the pad areas requiring component soldering are exposed, while the remaining areas are covered by ink. This prevents short circuits during soldering and protects the circuits from external environmental corrosion.
· Character Printing: Utilizing screen printing or inkjet printing techniques, component identifiers, model numbers, version codes, and other character information are printed onto the PCB surface to facilitate subsequent assembly and maintenance.
· Surface Finish Selection: Appropriate surface finish processes are chosen based on product requirements, such as electroplated gold, hot-dip tin, or OSP (Organic Solderability Preservative). Electroless gold plating offers excellent solderability and surface flatness, suitable for products demanding high soldering quality like mobile phone motherboards. Hot dip tin plating provides a cost-effective solution for general electronics. OSP strikes a balance between environmental compliance and cost, protecting pads from oxidation for a specified period and facilitating subsequent component placement.
Inspection and Quality Control
1. Visual Inspection: Conduct manual visual checks or utilize automatic optical inspection (AOI) equipment to examine PCB appearance. Verify absence of circuit defects like open circuits, short circuits, lifted copper foil, or faulty pads. Confirm integrity and clarity of solder mask and character printing to ensure visual quality compliance.
2. Electrical Performance Testing: Utilize specialized testing equipment such as vector network analyzers, oscilloscopes, and multimeters to evaluate the PCB's electrical performance. This includes measuring parameters like circuit continuity, impedance, capacitance, and inductance to verify compliance with design specifications. Particular attention is given to high-speed signal lines to ensure signal integrity, promptly identifying and resolving any electrical performance issues.
3. Reliability Testing: To ensure long-term stable operation in diverse environments, reliability tests are conducted. These include thermal shock testing to simulate rapid temperature transitions between high and low environments, evaluating thermal stability; humidity testing to expose PCBs to high-humidity conditions and detect moisture-induced short circuits or metal corrosion; and vibration testing to mimic transportation and usage vibrations, checking for solder joint or component loosening/detachment. Only through rigorous reliability testing can PCB quality be guaranteed to meet the stringent demands of electronic products.

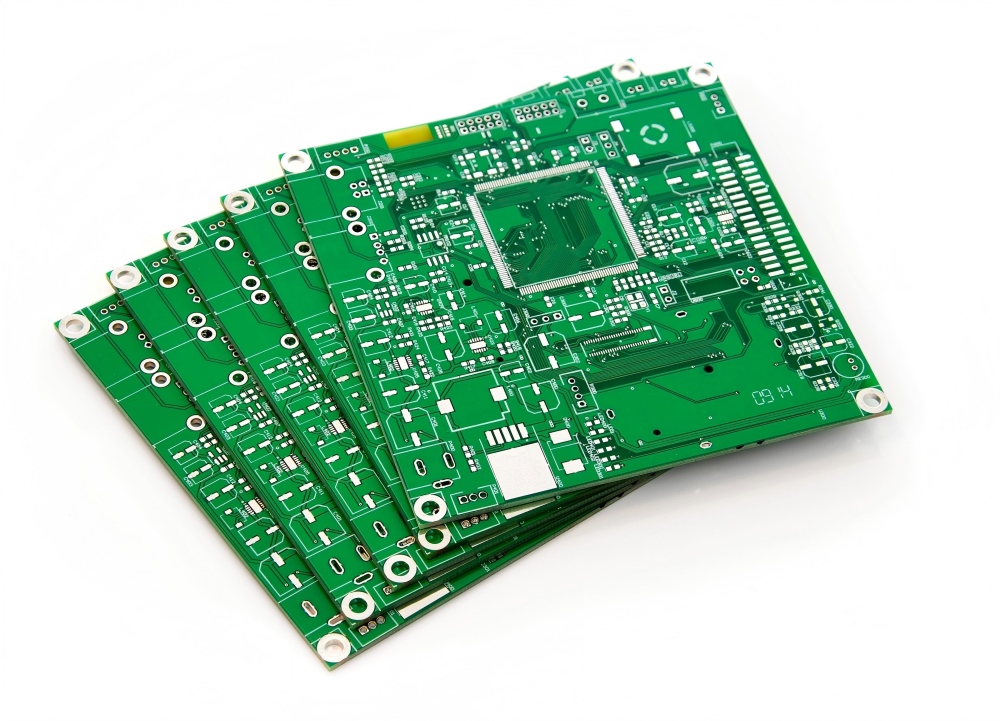

4. Finished Board Cutting and Packaging: After manufacturing, PCBs are cut to final shape according to design specifications. They then undergo cleaning, inspection, and packaging before delivery to customers.
· Finished Board Cutting: CNC or laser equipment is used to cut boards to final dimensions.
· Packaging: Utilize anti-static or vacuum packaging to prevent damage during transit.
Conclusion
The PCB manufacturing process encompasses material selection, lamination, etching, drilling, plating, solder resist application, silk screen printing, surface finishing, and final testing and packaging. Each step is critical. Only through precise control of every process can high-quality PCBs be produced to meet the demands of complex electronic devices.
