Radar PCBs are the unsung heroes behind technologies like automotive sensors, weather radar, and defense systems. They help transmit and receive high-frequency signals so radar systems can detect objects and measure their speed or distance. Designing radar PCBs is no easy task—it requires handling fast signals, avoiding interference, and maintaining reliability in harsh environments.

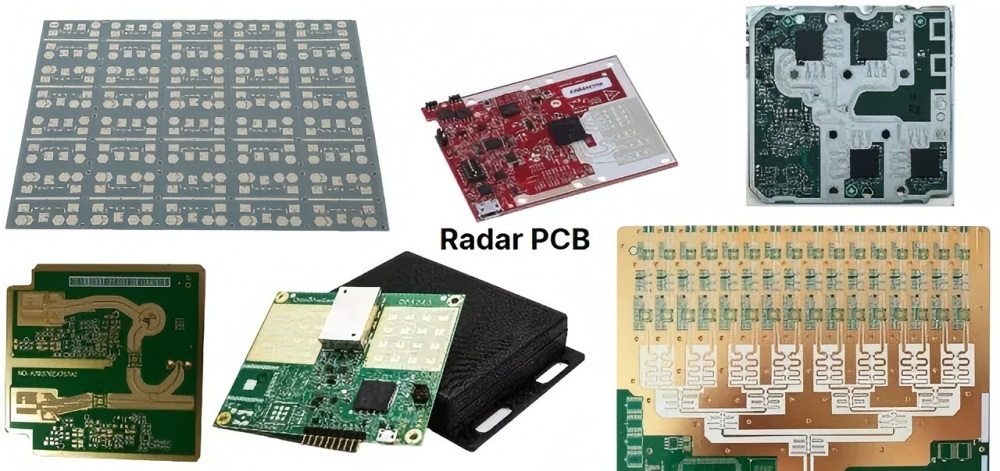

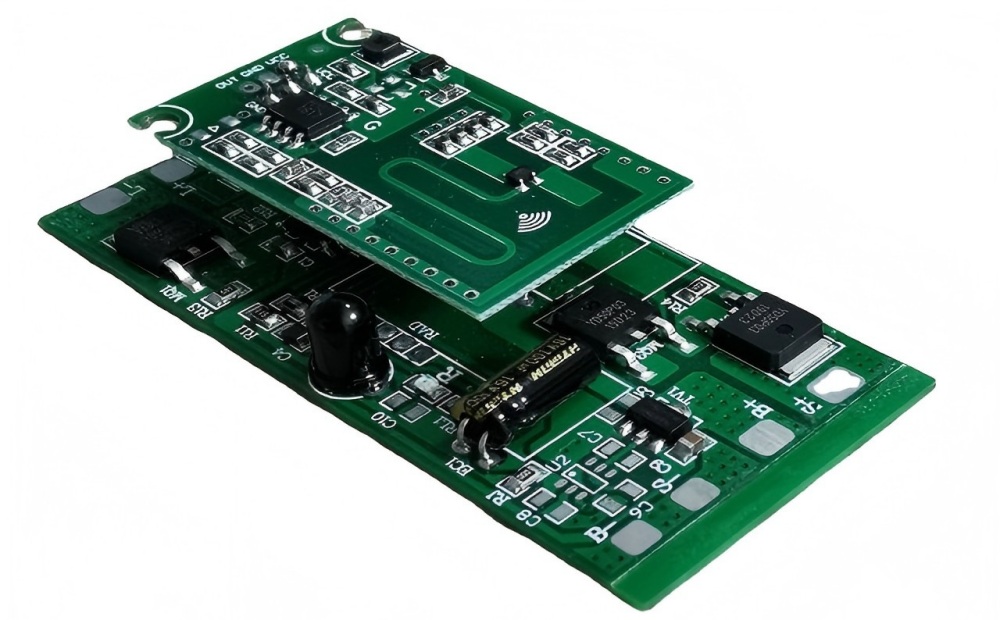

What is a Radar PCB?
Radar PCBs are printed circuit boards specifically engineered to handle extremely high-frequency signals within the 1GHz to 77GHz range. These PCBs are used in radar systems for precise object detection, ranging, and velocity calculations. Material selection, design precision, and assembly accuracy are critical to their performance.
Key Specifications for Radar PCBs:
1. Range: This indicates how far away an object is. The longer it takes for the signal to return, the farther the object is.
2. PRF (Pulse Repetition Frequency): This is how many times per second the radar transmits a signal. A good PRF helps the radar smoothly track fast-moving objects.
3. Minimum Range: This is the closest distance at which the radar can detect an object. If too close, the signal may return too quickly to be measured.
4. Maximum Clear Range: If the radar transmits a new signal before the previous one returns, it can cause interference. Therefore, adequate time is needed to read the correct distance.
How Radar Systems Work？
Radar systems operate by emitting radio signals and listening for their reflections. First, the transmitter sends signals through the antenna. When the signal encounters an object, it bounces back and is received by the receiver.
Once the radar receives the signal, the processor calculates the object's distance, speed, and even direction by analyzing the signal's time delay and variations.
Radar PCB Design Considerations:
1. Select the correct layer stackup – RF PCBs handle both digital and radio frequency signals, which may require separate ground planes. This often necessitates multiple dedicated ground layers, increasing the board's layer count. In certain cases, if digital signal frequencies are extremely high, a hybrid material layer stack may be employed. The layer stack determines trace characteristics and PCB manufacturability.
2. Selecting Suitable Materials – Common materials like FR-4 cannot handle signals above 1-2 GHz. These are termed standard loss materials (technically, they can manage high frequencies if trace lengths are sufficiently short). For high-frequency signals, ideally, the material datasheet must be consulted. Alternatively, estimates can be made by examining the tangent of the loss angle or the dissipation factor. A lower dissipation factor indicates lower attenuation at higher frequencies.
3. Impedance and Length Matching – High-frequency signal traces, whether analog or digital, require impedance matching and length matching. Typically, RF signals use 50-ohm impedance-matched traces, requiring consistency throughout the trace length. Radar PCBs also transmit and receive digital signals employing differential impedance based on communication protocols. However, many digital signals in such protocols feature extremely short rise and fall times and utilize multiple channels for data transmission and reception. These signals require length matching to ensure data integrity.
4. Maintain Proper Ground Shielding – Multiple ground shielding methods are available to prevent crosstalk and electromagnetic interference, thereby enhancing signal integrity and electromagnetic compatibility (EMC). Use ground traces and vias along high-speed signal routing paths, and employ an uninterrupted ground plane beneath high-speed signals to provide a continuous return path.
Materials Used in Radar PCBs
As with all RF and microwave PCBs, PCB materials critically influence electrical, thermal, and mechanical properties, alongside cost and manufacturability. Common laminates used in radar PCBs include:
1. RO4350B – RO4350B is one of the most popular high-speed materials and is considered one of the best low-loss materials on the market, given its availability, performance, and cost. This Rogers laminate has a dielectric constant of 3.48 and a loss factor of 0.0037. Its manufacturing process is similar to FR-4, allowing for easy use in mixed-layer stacks at a lower cost.
2. RO3003 – RO3003 is a high-performance laminate introduced by Rogers, priced significantly higher than RO4350B but offering several times the performance. It is an ultra-low-loss material specifically designed for RF applications. Its dielectric constant is 3.00, and its dissipation factor is 0.0013. Having been on the market for some time, this laminate is widely used in radar PCBs.
3. Astra MT77 – Astra MT77A is a high-performance laminate engineered for RF and millimeter-wave applications. This laminate from the Isola Group is an ultra-low-loss material offering exceptional electrical and mechanical stability across a wide temperature range. It features a dielectric constant of 3.00 and a dissipation factor of 0.0017. Its broad operating temperature range makes it an ideal choice for automotive radar.
4. Taconic RF-35 – Taconic R-35 is a popular laminate material widely used in high-frequency applications. It is an ultra-low-loss material with a dielectric constant of 3.5 and a loss tangent of 0.0018. It is the material of choice for Frequency Modulated Continuous Wave (FMCW) radar and Doppler radar.
Applications of Radar PCB:
1. Automotive Industry
Radar PCBs power Advanced Driver Assistance Systems (ADAS), enabling functions such as:
a. Adaptive Cruise Control (ACC)
b. Lane Change Assist (LCA)
c. Blind Spot Detection (BSD)
d. Automatic Emergency Braking (AEB)
e. Parking Assist (PA)
By leveraging 77GHz radar, these systems achieve higher resolution, greater accuracy, and enhanced detection capabilities—essential for modern autonomous vehicles. Radar technology plays a vital role in object recognition, motion prediction, and ensuring vehicle safety under all weather and lighting conditions. The transition from 1GHz to 77GHz frequencies enhances vehicle systems' ability to distinguish between near-field objects and distant targets, making it ideal for both short-range and long-range perception.
2. Industrial Automation
In manufacturing and industrial settings, radar PCBs are used for:
a. Precise distance and object detection
b. Tank level measurement
c. Robotics and automated guided vehicles (AGVs)
Industrial automation demands high-precision sensing and detection systems, where radar PCBs excel. For instance, 77GHz radar systems deliver the accuracy required to detect liquid levels within containers and tanks, minimizing measurement errors. These PCBs also play a vital role in autonomous robotic systems, enhancing navigation and obstacle avoidance capabilities.
3. Telecommunications
Radar PCBs are integral to 5G technology and next-generation wireless communication systems. Operating at high frequencies, these PCBs ensure high-speed, low-latency communication, enabling seamless data transmission and reliable connectivity. Telecom infrastructure demands radar systems capable of long-range operation with minimal signal loss, making these PCBs critical for optimizing network performance and reliability.
Challenges in Radar PCB Design
Radar PCB design presents unique challenges requiring specialized expertise and precision to overcome:
1. Material Selection: High-frequency radar systems necessitate advanced materials with stable dielectric properties and ultra-low loss. Rogers RO3003G2, RO4835, and ITEQ IT180 are favored for their exceptional performance, ensuring minimal signal attenuation and consistent operation across diverse conditions.
2. Copper Foil Surface Roughness: Copper foil surface roughness directly impacts signal loss at millimeter-wave frequencies. Smooth copper foil reduces surface roughness, enhancing signal integrity and phase accuracy.
3. Tight tolerances: High-frequency circuit boards require precise trace widths, spacing, and impedance control. Achieving 4mil/4mil trace accuracy ensures optimal circuit operation while avoiding interference or signal distortion.
4. Environmental stability: Radar PCBs must maintain consistent performance under extreme conditions, including temperature fluctuations, humidity, and mechanical stress. Appropriate material selection and robust manufacturing processes are critical for ensuring long-term reliability.
Conclusion
Radar PCB design is no simple task—it involves handling high-frequency signals, selecting the right materials, and ensuring everything operates reliably in harsh environments. With emerging trends like artificial intelligence, millimeter wave technology, and eco-friendly materials, radar PCBs now demand greater attention and expertise than ever before.
