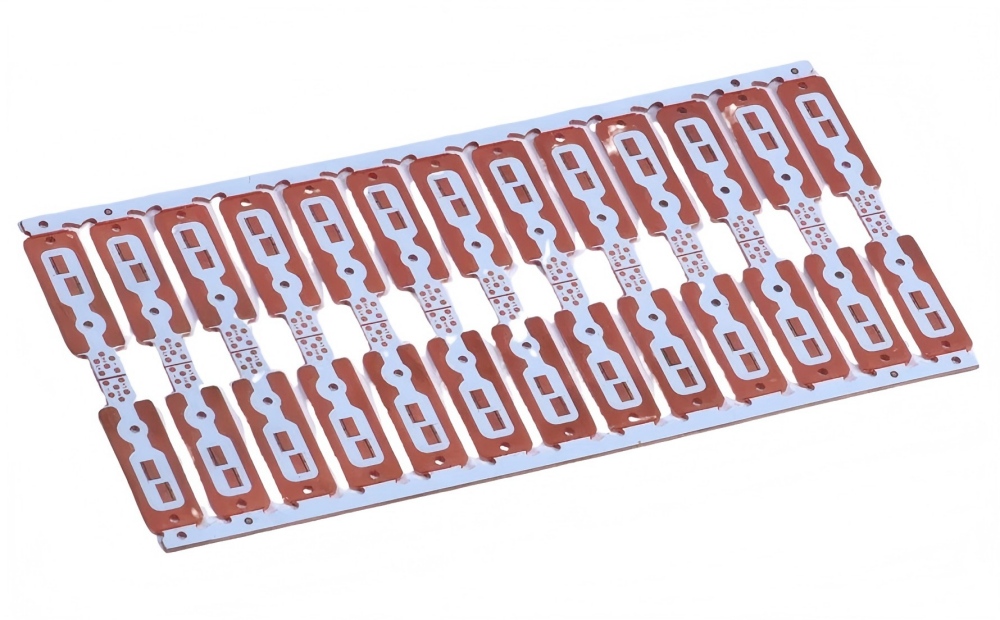

Copper-based PCBs are circuit boards primarily composed of copper as the conductive material, typically laminated onto a metal or insulating substrate. Compared to common FR4 PCBs (made from glass-fiber-reinforced epoxy laminates), copper-based PCBs usually feature thicker and more transparent copper layers, making them more robust and better suited for high-voltage currents or high-temperature environments. Copper-based PCBs exhibit superior thermal conductivity compared to alternative materials like aluminum-based or iron-based PCBs. They are ideal for high-frequency circuit designs and applications with significant temperature fluctuations. Copper foil thicknesses ranging from 35 μm to 280 μm enable the effective management of high current loads.
Types of Copper-Based PCBs

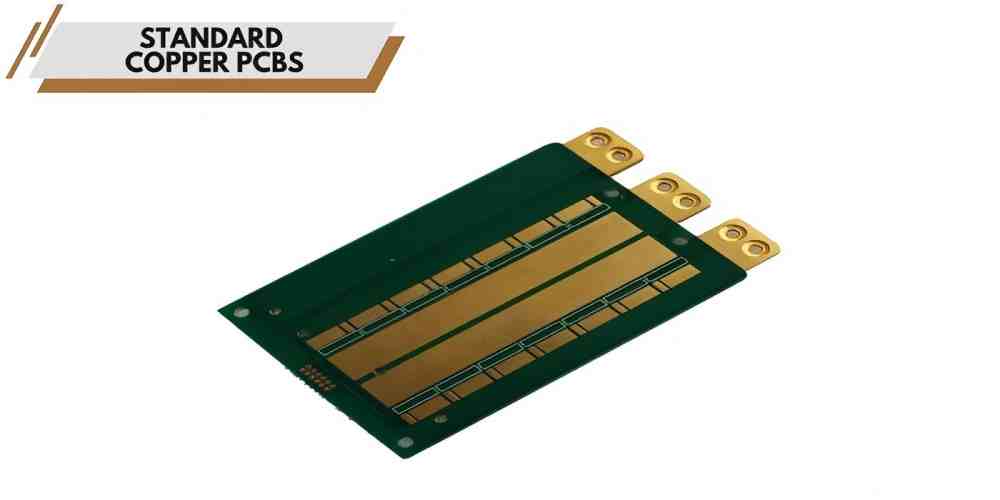

1. Standard Copper PCB
Standard copper-based PCBs are the industry's most commonly used boards. Their thickness typically measures 1 oz/sq ft (35 microns). They are widely used in various electronic devices such as computers, smartphones, and other small appliances. They are ideal for general electronics that do not require high current handling.
2. Thick Copper PCB
PCBs with thicker copper foil are also known as thick copper PCBs. Their thickness ranges from 3 oz/sq ft (105 microns) to 10 oz/sq ft (350 microns) or higher. These boards are designed to handle higher currents and improve heat dissipation. They are commonly used in transformers, power supplies, and motor controllers. Due to their additional copper, they can handle greater power in certain applications.
3. Ultra-Thick Copper PCB
Ultra-thick copper exceeds 20 oz/sq ft. Ultra-thick copper-based PCBs are suitable for extreme conditions. They withstand high electrical loads and temperatures, making them ideal for nuclear power systems, military applications, and high-voltage industrial equipment. These ultra-thick copper-based PCBs can endure thousands of amperes of current and extreme temperatures without performance degradation.

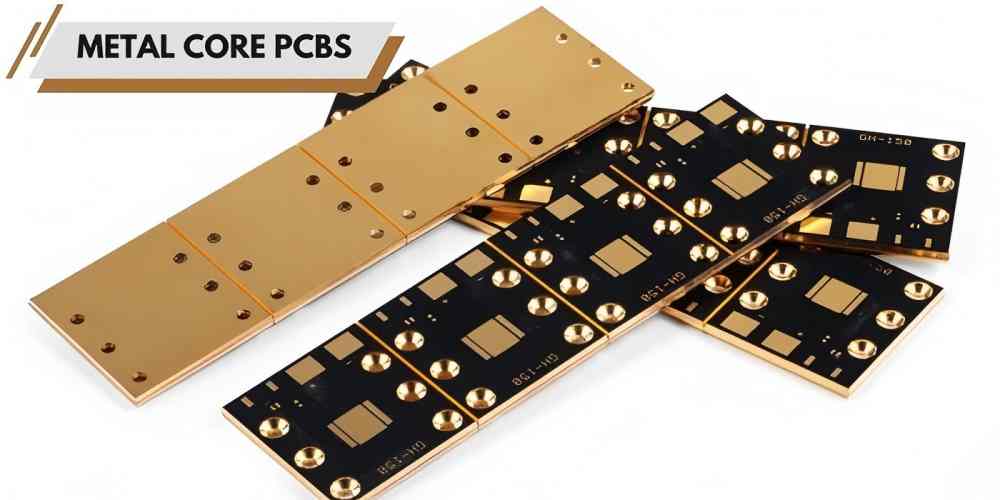

4. Metal Core PCB (MCPCB)
Metal core PCBs utilize a metallic substrate (typically aluminum or copper) as the core layer for efficient heat dissipation. Copper-based PCBs offer superior thermal conductivity, helping maintain device reliability in temperature-sensitive environments. They are well-suited for high-power LED systems and power adapters.
5. Flexible Copper PCBs
Flexible copper-based PCBs utilize flexible substrates, including thin copper layers and polyimide film. They are well-suited for dynamic or bendable applications like wearable electronics and flexible displays.
Key Characteristics of Copper-Based PCBs
1. High Thermal Conductivity
Copper boasts a thermal conductivity of approximately 398 W/m·K. This significantly exceeds materials like FR4 or aluminum. Consequently, copper-based PCBs deliver outstanding heat dissipation, preventing component overheating and extending component lifespan.
2. Superior Electrical Conductivity
In terms of electrical conductivity, copper is second only to silver. Copper's minimal resistance makes it an ideal material for high-performance circuits. This enables your devices to operate more efficiently and reliably. For mission-critical applications, choosing copper-based PCBs ensures optimal power transmission and circuit performance.
3. Mechanical Strength
Copper-based PCBs are more robust than standard PCBs. They better withstand mechanical stress, thermal cycling, and vibration, making them well-suited for harsh environments. If you're manufacturing industrial machinery or outdoor electronics, copper-based PCBs withstand wear and tear. Their strength guarantees long-lasting durability and high performance.
4. Corrosion Resistance
Properly treated copper-based PCBs exhibit excellent corrosion resistance. Surface treatments like OSP or ENIG prevent copper layers from corroding in humid or harsh environments. Copper-based PCBs endure demanding conditions, ensuring long-term reliability. Designs for harsh environments should always incorporate corrosion resistance.
5. Excellent Solderability
Since copper-based PCBs support stable and secure connections, most can be soldered using various methods. This simplifies component assembly and boosts overall efficiency. Whether employing traditional or modern soldering techniques, copper-based PCBs perform reliably. Their superior solderability keeps your electronics functioning properly.
Advantages of Copper-Based PCBs
1. Enhanced Thermal Management Applications
Copper's inherent ability to rapidly dissipate heat from critical components helps prevent failures caused by thermal stress. Furthermore, this process makes ultra-thick copper PCBs essential for LED lighting equipment and power electronics systems, where heat accumulation is a primary concern.
2. Enhanced Current Carrying Capacity
Copper-based PCBs feature exceptionally thick copper layers, supporting high currents without requiring larger board dimensions. This makes them ideal for compact devices handling high power. Smaller footprints with greater power capacity mean higher power handling efficiency. Increased current capacity also boosts device performance. Copper-based PCBs meet high-power demands without sacrificing space.
3. Improved Durability and Reliability
Copper-based PCBs are robust and durable, offering exceptional mechanical and thermal properties. This makes them resistant to cracking, breaking, or connection loss. They deliver reliable performance even in harsh environments. Such PCBs are well-suited for applications where reliability is critical. Their long lifespan ensures your devices operate flawlessly over time.
4. Compact and High-Density
Thicker copper layers provide more current-carrying paths within a smaller area, making them perfect for space-constrained, energy-efficient designs. Copper PCBs enhance space efficiency without compromising performance, enabling more powerful and compact devices. They are essential for high-performance, space-saving electronics.
5. Extended Electronics Lifespan
Copper-based PCBs reduce thermal stress, lower power management costs, and extend product longevity. This translates to fewer repairs or replacements. By lowering component temperatures, they ensure sustained device operation. Copper-based PCBs offer cost-effective reliability for equipment. They extend the lifespan of your electronics and enhance their long-term performance.
Applications of Copper-Based PCBs
1. Modern High-Power Electronics
These PCBs are frequently used in high-power equipment like inverters, converters, and motor controllers. Their high voltage and current capacity, coupled with thermal performance, make them essential materials in power supply designs.
2. LED Lighting Systems
LEDs generate significant heat, especially in high-brightness applications. For LED lighting, copper-based MCPCBs are ideal for thermal management in modules used for street lighting, backlit displays, and automotive illumination.
3. Modern Automotive and Electric Vehicles
In modern motor vehicles, particularly hybrids and electric vehicles, copper-based PCBs are employed in power distribution units, Advanced Driver Assistance Systems (ADAS), and vehicle battery management systems. They provide the robustness required for automotive functionality.
4. Heavy-Duty Industrial Equipment
Copper-based PCBs are indispensable components in robotics, heavy machinery, and factory automation systems. Their exceptional durability and high power-handling capacity make them ideal for the latest demanding applications.
5. Aerospace and Defense Sector
The aerospace and military sectors' requirements for extreme environmental temperatures, rapid vibration, and equipment reliability make copper-based PCBs an essential choice. They are also used in navigation, radar systems, satellite electronics, and avionics.
6. Essential for Renewable Energy Systems
Energy storage systems, solar panels, solar inverters, and wind turbines all rely on robust PCBs capable of handling high voltage and power levels. Thus, copper-based PCBs play a critical role in ensuring the enduring performance and safety of these systems.
7. Medical Electronics
Medical electronics, particularly diagnostic tools and imaging systems, demand stable and durable copper-based PCBs. They deliver exceptional thermal and electrical performance, guaranteeing precise and consistent results.
Conclusion
Copper-based PCBs represent a significant innovation in electronics. They excel in thermal conductivity, electrical conductivity, mechanical strength, and reliability. Whether powering electric vehicles, managing heat in LED lighting, or ensuring the safe operation of medical devices, these copper-based PCBs are indispensable in the modern electronic era.
In today's era, where modern industry pursues miniaturization and continually pushes the limits of power density, copper-based PCBs stand as the sole choice embodying this advancement and its significance. Despite higher costs, their benefits outweigh the investment in most cases, particularly in applications where operational negligence or failure is unacceptable.
For product designers, engineers, and manufacturers seeking to build durable, high-performance devices, copper-based PCBs are the only choice for a robust and reliable foundation.
