Glass PCB is a novel circuit board material. Compared to traditional FR4 circuit boards, which use fiberglass, glass PCB offers superior heat resistance, electrical insulation, and can even be transparent. These properties make them highly valuable for advanced, high-performance devices, securing their place in high-end electronics manufacturing.
What Is a Glass PCB Made Of?
Glass Substrate Materials
At the core of every glass PCB lies a glass substrate—the non-conductive layer supporting the circuitry. Manufacturers select different glass types based on application requirements, each offering distinct advantages:
1. Fused Quartz (Quartz): Renowned for its ultra-low thermal expansion and exceptional optical transparency, making it ideal for high-precision, high-temperature environments.
2. Microcrystalline Glass: Combines the benefits of glass and ceramics. Ideal for high-frequency circuits due to its low dielectric constant and stable performance, widely used in 5G, radar, and similar systems.
3. Toughened Glass: Cost-effective with high mechanical strength, frequently used in rugged equipment or military electronics requiring impact or vibration resistance.
4. Epoxy Glass (e.g., FR-4): A more common choice offering moderate heat resistance and affordability, suitable for less demanding applications.
5. Sapphire Glass: Though costly, its chemical resistance, infrared transparency, and exceptional heat resistance make it ideal for infrared optics or defense systems.
Copper Foil and Conductive Layers
Copper foil forms circuit paths on the glass substrate. It typically ranges from 18µm to 70µm in thickness, depending on the current load requirements. Manufacturers employ advanced techniques like sputtering, vapor deposition, or electroless plating to apply copper. These methods ensure strong adhesion and create clean, precise circuits.
Key Features and Advantages
1. High Thermal Resistance: Glass PCBs withstand extreme heat. Quartz glass even endures temperatures up to 1000°C, making it ideal for devices that generate significant heat.
2. Superior Electrical Insulation: With a low dielectric constant, glass facilitates clear signal transmission with minimal interference. This makes it exceptionally suitable for high-frequency or RF circuits.

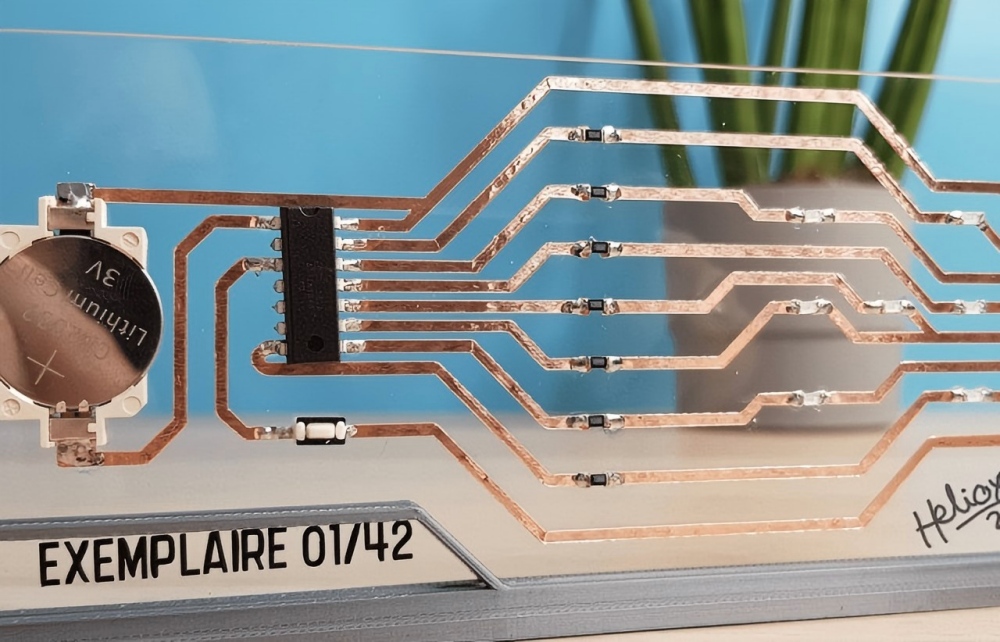

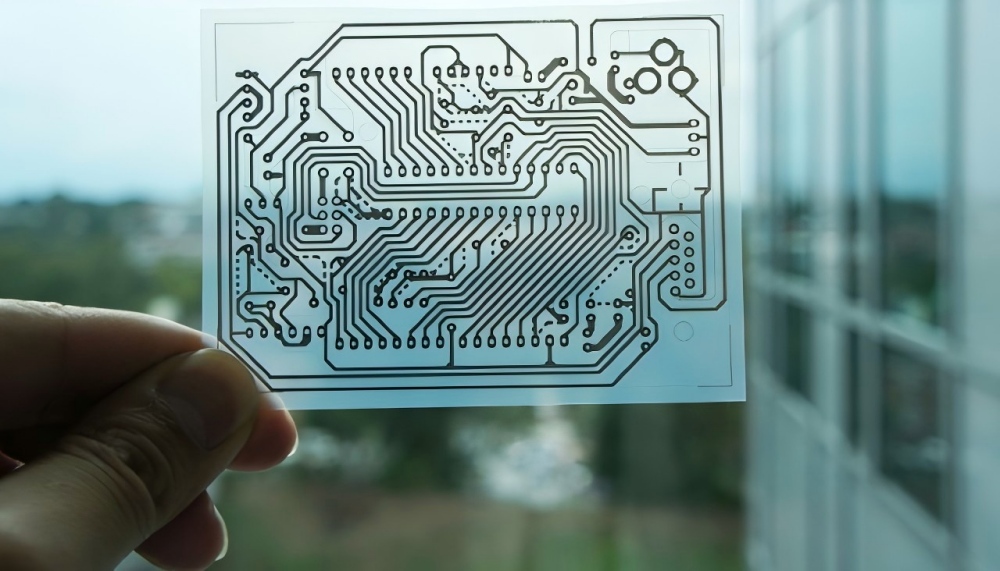

3. Optical Transparency: Glass can be made transparent, making it perfect for LED lighting, displays, and other applications requiring visible circuits or a clean aesthetic.
4. Dimensional and Chemical Stability: Glass resists warping, deformation, and corrosion. This ensures your circuits remain secure and stable over time.
5. 360° illumination: Some transparent glass PCBs allow light to pass through, making them highly suitable for modern lighting and display designs where both functionality and aesthetics are crucial.
Types of Glass PCBs
1. FR-4 Glass-Epoxy PCB
This is the most widely used type of circuit board. Constructed from glass fiber and epoxy resin, it offers excellent strength and heat resistance up to 180°C. It is cost-effective and suitable for many general-purpose electronic products.
2. Microcrystalline Glass PCB
Used in high-frequency applications like 5G, satellite, and radar systems, this PCB type offers low signal loss and robust stability. It excels in fields where speed and reliability are paramount.
3. Quartz Glass PCB
These boards withstand extremely high temperatures, even up to 1000°C. They are also optically transparent, making them ideal for precision high-end equipment.
4. Thin Glass Substrate PCB
This type utilizes ultra-thin glass sheets—typically less than 0.2 millimeters thick. They are highly suitable for compact electronics like smartphones, OLED displays, and wearable devices, where space is limited but performance cannot be compromised.
5. Sapphire Crystal Printed Circuit Boards
Its chemical resistance and processing capabilities make infrared sapphire glass an excellent choice, frequently used in military systems and optics. It is robust, stable, and performs well under pressure.
6. Tempered Glass PCBs
If your device must withstand impacts, drops, or harsh environments, tempered glass PCBs reign supreme. Exceptionally durable, they're commonly used in night vision systems and rugged electronics for extreme conditions.
Common Applications of Glass PCBs
1. Aerospace and Defense: Glass PCBs excel in radar, satellite, and infrared systems. They function reliably under extreme conditions while maintaining signal clarity.
2. Medical Devices: Glass PCBs are used in wearable monitors, MRI machines, and ultrasound devices due to their precision, safety, and compact size.
3. Photonics and Optoelectronics: Glass PCBs provide the clarity and stability required for optimal performance in applications involving light and laser handling.
4. LED Displays and Transparent Electronics: Glass PCBs are highly suitable for LED lights, display screens, and transparent technologies due to their transparency.
5. 3D Printers and Solar Panels: Glass PCBs are exceptionally robust and withstand high temperatures, making them ideal for 3D printers and solar power systems.
6. Consumer Electronics: They are also used in smartphones and wearable devices, where space is limited but performance is critical.
Conclusion
Glass PCBs represent an ideal solution for modern electronics. They offer exceptional heat resistance, transparency, and high precision. As more industries pursue enhanced performance within compact spaces, demand for glass PCBs continues to grow—particularly in 5G, medical devices, and aerospace applications.
